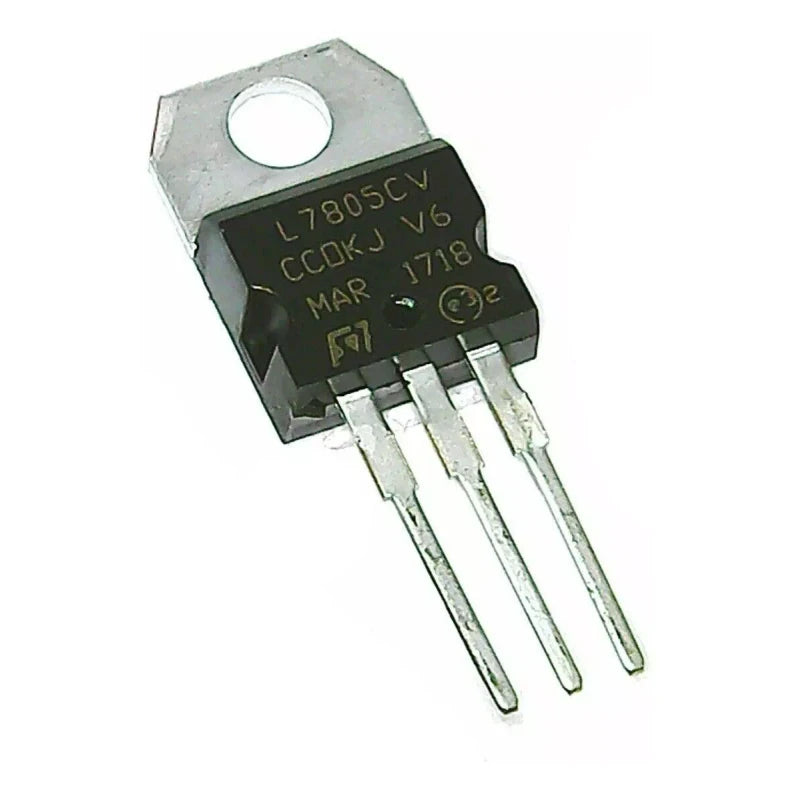

Electronic Voltage Regulator 10 Piece L7805CV L7805 7805 Positive Voltage Regulator 5V 1.5A TO-220 IC (KIT)

The L7805 is a three-terminal positive voltage regulator available in TO-220 package. These voltage regulators are perfect for easy integration into your PCB or use with a breadboard power supply. With the input voltage of 7 VDC to 25 VDC, these regulators provide a steady output of 5 VDC. They also feature built in thermal overload protection to ensure safe shutdown in the event of over demand or improper heat dissipation helping to protect your project from damage. They also employ internal current limiting and safe area protection, making it essentially indestructible. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Heat sink recommended for high output usage.

Features:

• 100% brand new and high quality voltage regulator.
• Genuine Permium Quality Guaranteed!
• Thermal overload protection.
• Short circuit protection.
• Output current up to 1.5A.
• Input voltage range of 7 - 25 VDC.
• Output transition SOA protection.
• 2% output voltage tolerance.

Specifications:

Package Include(s):

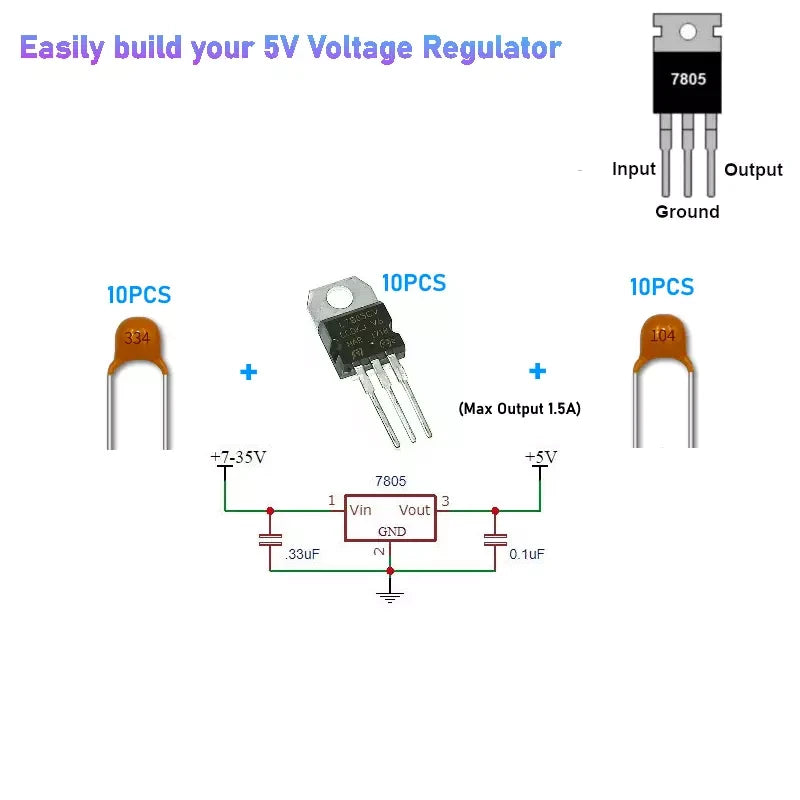

• 10 x High Quality  L7805CV Positive Voltage Regulator 5V 1.5A TO-220 IC
•  with 10PCS 334 &10PCS 104 Capacitors in the package.
